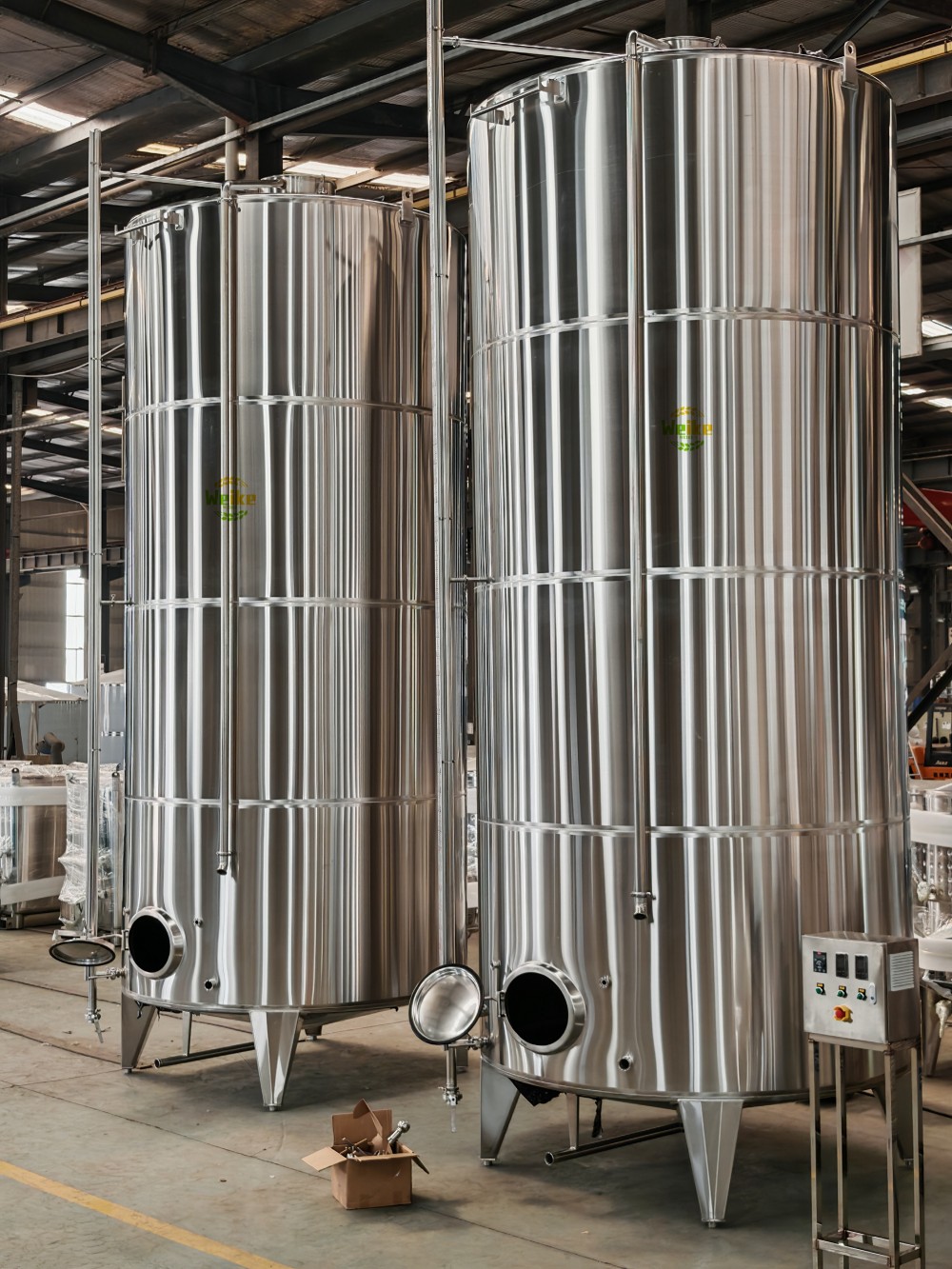

20000L stainlss steel wine storage tanks

20000L stainlss steel wine storage tanks are made of stainles steel 304 material, are the core equipment for wine making, mainly used for storing and transporting wine
Core types and applicable scenarios
Wine storage tanks can be classified into the following types based on material and function:
Stainless steel tank (mainstream choice):

Get a Quote

PRODUCT DESCRIPTION

20000L stainlss steel wine storage tanks are made of stainles steel 304 material, are the core equipment for wine making, mainly used for storing and transporting wine

Core types and applicable scenarios

Wine storage tanks can be classified into the following types based on material and function:

Stainless steel tank (mainstream choice):

Vertical/Horizontal: Vertical saves space and is suitable for small and medium-sized wineries; Horizontal for easy mixing and suitable for large-scale fermentation. ‌‌

Wine storage tanks with front manhole design is easier for the operator to get inside.

The soaking process. During the fermentation process, grape skins and juice are placed together to facilitate the better integration of phenolic and aromatic substances into the wine. The longer the soaking time, the more concentrated the released substance.

Dimension of 20000L stainlss steel wine storage tanks

Capacity(Liter)	Diameter(mm)	Total Height(mm)
1000L	1100	2200
1500L	1300	2200
2000L	1300	2550
3000L	1600	2550
5000L	1900	3000
6000L	1770	3500
7500L	2000	3500
8000L	2050	3500
10000L	2100	4000
12500L	2100	4900
15000L	2150	5500
20000L	2250	5950

Detailed specification list

Name

Specification l ist

20000L stainlss steel wine storage tanks

1. Stainless steel 304

2. plate thickness: 2mm,

3. Conical centric top

4. Sample valve

5. CIP – rotary spray ball

6. Wine outlet and drain outlet assembly

7. Fully welded cladding

8. with cooling jacket,

9. RTD Probe

10. 2″ Butterfly valves

11. bottom cone

12. 2″ PVRV

13. Ladder Rack

14. Bimetallic thermometer

Main Features of 20,000 Wine Storage Tanks (Large-Scale Storage Fleet)

1. Massive Capacity for Bulk Inventory Management

This extensive fleet provides sufficient space to store vast volumes of wine across different vintages, varieties, and aging stages, perfectly suited for large wineries, beverage distributors, or wine conglomerates with global supply chain needs.

2. Uniform Preservation Performance

All tanks are constructed from food-grade 304/316 stainless steel, equipped with insulated jackets and sealed lids to maintain stable temperature and humidity, effectively preventing oxidation and spoilage and ensuring consistent wine quality during long-term storage.

3. Highly Efficient Operational Flexibility

Supports categorized storage of red, white, rosé, and sparkling wines, with dedicated sampling ports and CIP (Clean-in-Place) systems to streamline monitoring, transfer, and cleaning processes, minimizing cross-contamination risks and operational downtime.

4. Cost-Effective Large-Scale Operation

The standardized design of the 20,000-tank fleet enables bulk maintenance, unified part replacement, and optimized workflow scheduling, significantly reducing long-term operational and maintenance costs while boosting overall storage efficiency.
