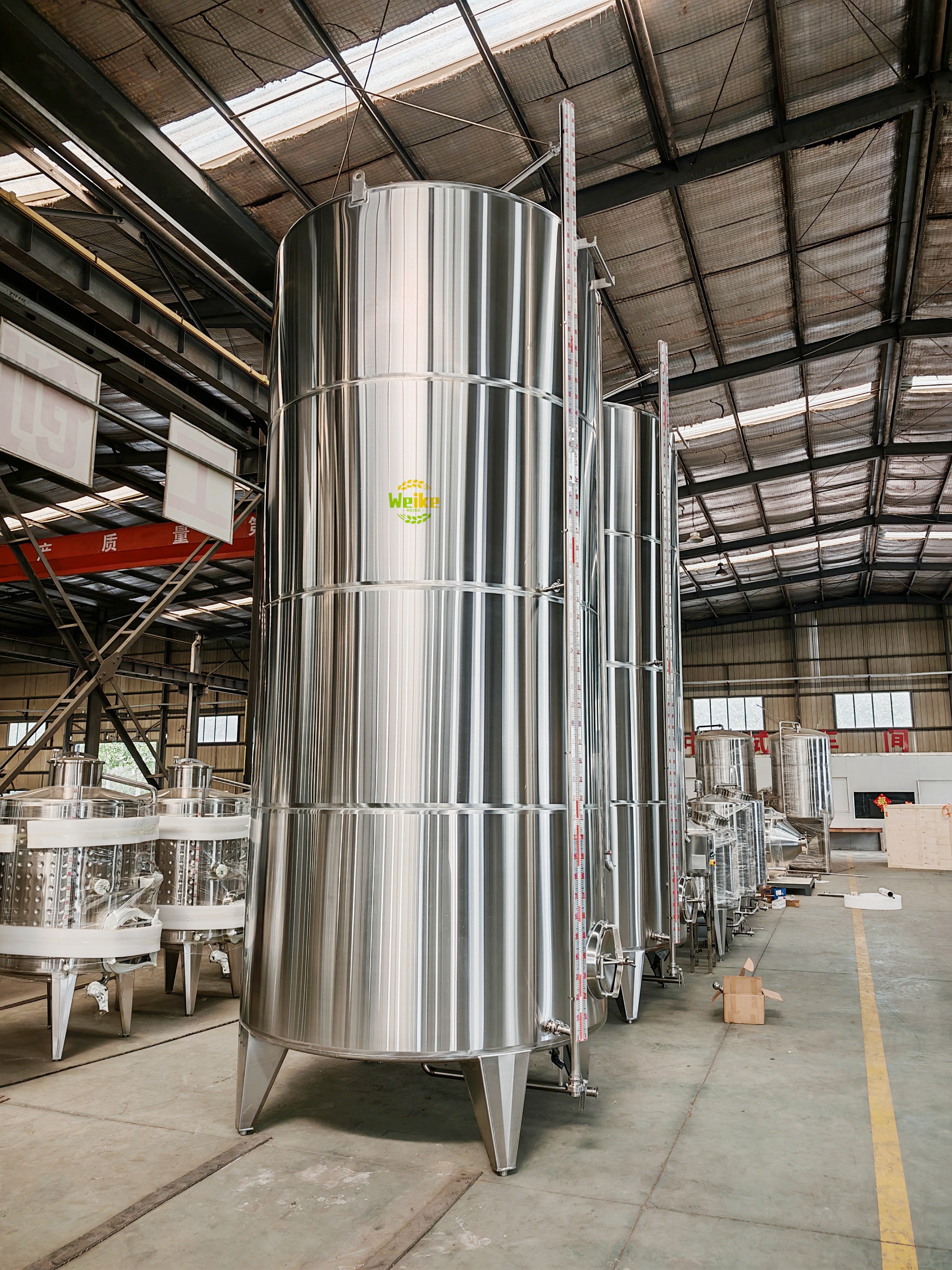

stainless steel palm oil storage tanks

Palm oil storage tanks

palm oil storage tanks are specialized sanitary vessels designed to preserve the unique flavor, aroma, and nutritional properties of palm oil by minimizing oxidation, light exposure, and contamination risks.

Core Specifications & Features

1. Material & Surface Treatment

Contact parts are exclusively made of food-grade SUS316L stainless steel—its excellent corrosion resistance avoids chemical reactions with palm oil’s fatty acids, while the inner wall is mirror-polished (Ra ≤ 0.4 μm) to eliminate micro-crevices where oil residues could oxidize; the outer wall is often coated with a matte anti-reflective finish or wrapped in UV-blocking insulation to prevent light-induced degradation.

2. Structural Design for Freshness Preservation

◦ Closed, airtight structure: Equipped with a nitrogen blanketing system (inert gas filling) to displace air and isolate oxygen, the primary cause of palm oil rancidity; breathing ports are fitted with 0.22 μm hydrophobic filters to block moisture and contaminants.

◦ Temperature control: Full jacket or coil insulation with glycol circulation maintains a stable storage temperature of 10–15°C—this inhibits the activity of lipase enzymes and slows down oxidation, extending the oil’s shelf life by 6–12 months.

◦ Bottom configuration: Sloped or conical bottom with a sanitary ball valve at the lowest point enables complete discharge of oil, avoiding stagnant residues at the tank bottom that could spoil and contaminate fresh batches.

3. Key Accessories

Standard fittings include a top-mounted manway with a gasket seal for inspection and cleaning, a radar level gauge for non-contact volume monitoring (avoids oil disturbance), a sampling valve at mid-height (for representative quality testing), and a CIP cleaning ball for automated, residue-free cleaning between batches.

Application Scenarios

Ideal for palm oil mills, specialty food processors, and bulk distributors, suitable for storing extra virgin palm oil (EVOO), virgin palm oil, and refined palm oil—compatible with small-scale (500L) artisanal storage and large-scale (50,000L+) industrial warehousing.
