Classification of wine fermentation tanks and their main characteristics

Classification of wine tanks and their main characteristics

Here’s a clear, structured classification of wine tanks, both by material and functional type (standard industry categorizations), with key traits for quick reference:

By Material

1. Stainless Steel Tanks (304/316) (most common industrial choice). Excellent temperature control (double jacket), inert (no flavor transfer), easy CIP cleaning, sealed/variable-capacity options. Ideal for whites, rosés, and clean-ferment reds.

2. Oak/Wooden Tanks/Barrels (French/American oak; small barrels to large foudres). Adds vanilla, spice, tannins; enables slow micro-oxygenation. Used for premium red aging, some traditional fermentations.

3. Concrete Tanks (rectangular, egg-shaped). Neutral, thermal stability, gentle micro-oxygenation (mineral notes), no wood flavors. Popular for natural wines, high-end whites/rosés.

4. Clay/Amphorae (ancient style, unglazed/glazed). Terroir expression, controlled oxygen exchange, earthy/mineral complexity. Used in Old World traditional wineries.

5. HDPE/Plastic Tanks (lightweight, low-cost). For small batches, trials, temporary storage. Not for long aging (risk of scratching/bacteria).

By Function & Design

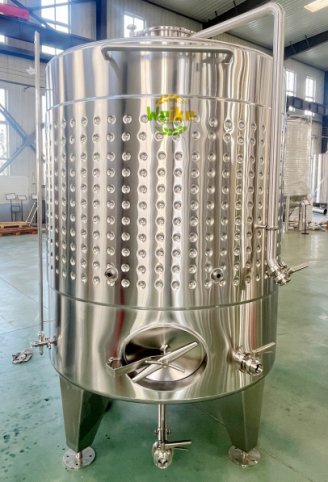

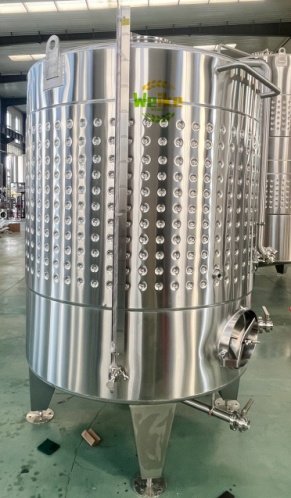

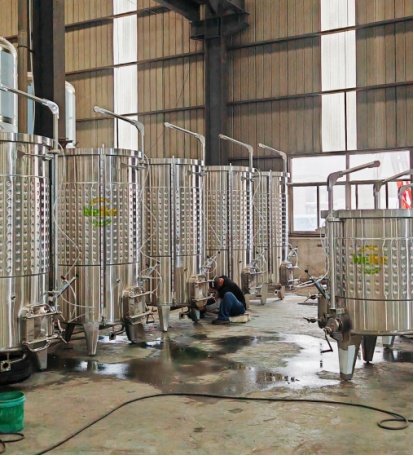

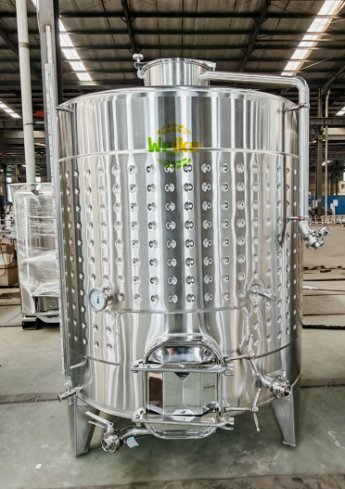

1. Jacketed wine fermeter

Jacketed wine fermenter is a professional stainless steel vessel designed for winemaking, featuring a double-layer jacket for precise temperature control during fermentation. Constructed from food-grade 304 or 316L stainless steel, it comes with a dimple cooling jacket for efficient heating, cooling and insulation, ideal for red wine, white wine, fruit wine and sparkling wine production. The tank adopts sanitary mirror polishing inside, no dead corners, easy to clean and meets food-grade standards. Equipped with conical or sloped bottom, it facilitates sediment discharge and lees removal. Standard configurations include manway, sampling valve, pressure gauge, CIP cleaning ball, thermowell and liquid level gauge, ensuring stable and controllable fermentation. It supports precise temperature adjustment to protect wine flavor, improve fermentation quality and extend aging storage. Custom capacities are available for small wineries, commercial breweries and beverage production lines.

                                             Red wine fermenter                                            white wine fermenter

2. Wine storage tank

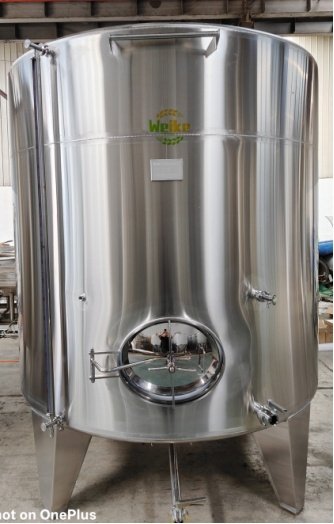

-Single Layer Wine Storage Tank

This single-layer wine storage tank is made of food-grade 304/316L stainless steel, with smooth internal polishing, no dead corners, and easy to clean. It is specially designed for wine storage, aging, blending and transfer, providing a stable and hygienic environment to maintain wine aroma and quality. The tank features a sealed structure, top manway, sampling valve, liquid level gauge and outlet, ensuring safe and convenient operation. Suitable for wineries, wine workshops and beverage production lines, it can effectively protect wine from contamination and oxidation during long-term storage.

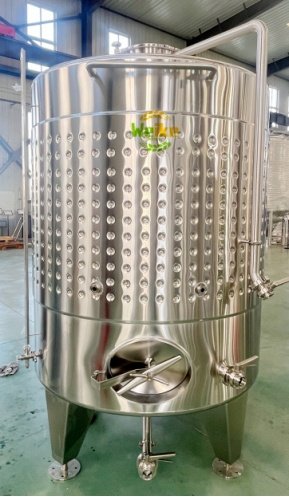

-Jacketed Wine Storage Tank

This jacketed wine storage tank is constructed from food-grade 304/316L stainless steel with a dimple jacket for efficient temperature control, including cooling, heating and insulation. It maintains stable and ideal temperature for wine storage, aging, blending and maturation, effectively preventing oxidation and spoilage. The tank features sanitary internal polishing, sealed design, manway, sampling valve, temperature port, liquid level gauge and CIP cleaning system, ensuring hygiene and easy operation. Suitable for wineries and beverage production facilities, it provides a reliable and controlled environment to preserve wine flavor, clarity and quality during long-term storage.

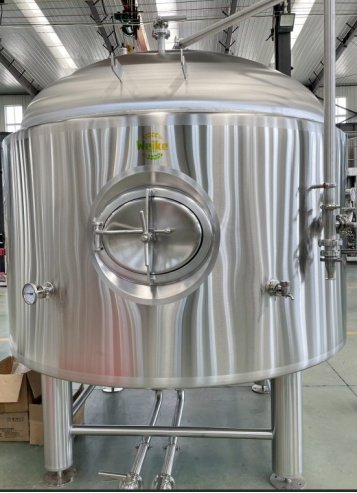

3. Sparkling wine tanks

This sparkling wine tank is specially designed for the production, secondary fermentation, maturation and storage of sparkling wine, champagne and carbonated wine. Made of food-grade 304/316L stainless steel, it features a pressure-resistant structure to safely hold carbonation and ensure stable fermentation. Equipped with a pressure gauge, safety valve, pressure relief device and jacket for precise temperature control, it maintains ideal conditions for sparkling wine production. The tank includes a top manway, sampling valve, CIP cleaning port and liquid level gauge for hygienic operation and easy maintenance. Its sealed, pressure-rated design effectively preserves carbonation, aroma and taste, suitable for wineries and beverage plants producing high-quality sparkling wine.

Sparkling wine tank jacketed              sparkling wine tank jacketed and insulated

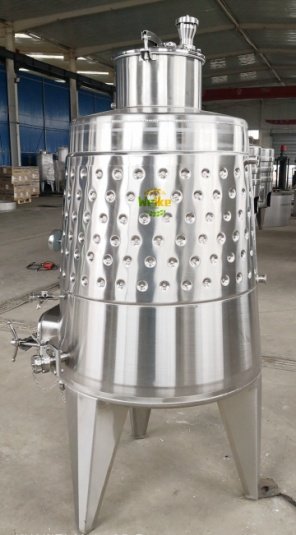

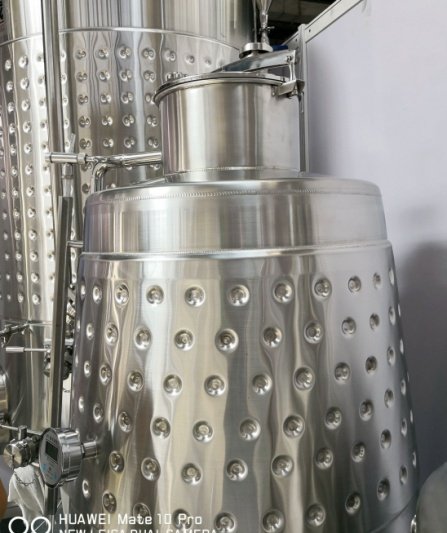

4. Tapered wine tank

This tapered wine tank is made of food‑grade 304/316L stainless steel with a sloped conical bottom design for efficient sediment discharge, lees removal and wine clarification. It features a smooth sanitary interior, no dead corners, and easy cleaning. Equipped with optional cooling/heating jacket for precise temperature control, manway, sampling valve, temperature port and liquid level gauge, it is widely used for wine fermentation, aging, storage and blending in wineries and beverage production lines. The tapered structure improves wine stability and quality while simplifying daily operation and maintenance.

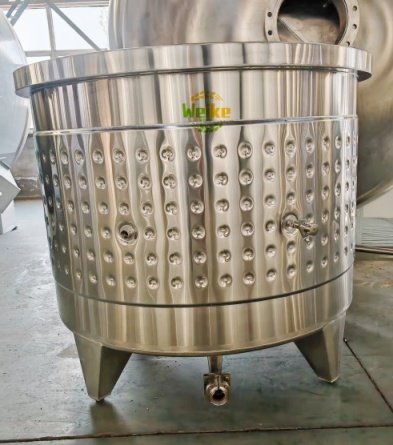

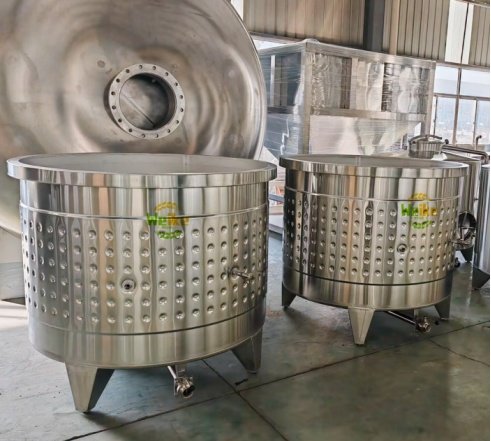

5. Open Top Wine Fermenter

This open top wine fermenter is specially designed for red wine fermentation, maceration, and punching down operations. Constructed from food-grade 304/316L stainless steel, it features an open-top design for easy cap management, mixing, and inspection. The tank can be equipped with a cooling or heating jacket for precise temperature control, a conical bottom for smooth lees discharge, and sanitary fittings including sampling valve, manway, and CIP cleaning port. Its open structure improves color extraction and flavor development, making it widely used in wineries for small-batch and commercial wine production.

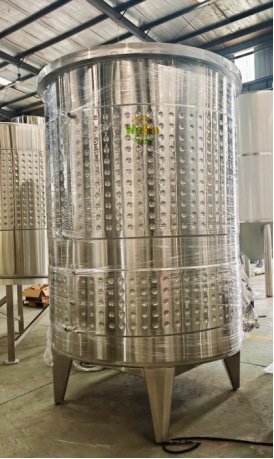

6. Variable capacity wine tanks

These variable capacity wine tanks are made of food‑grade 304/316L stainless steel, designed to eliminate air contact and prevent wine oxidation during storage and aging. The floating lid design automatically adjusts to the wine volume, maintaining a full‑tank condition with no headspace. They come with a sealed floating lid, pressure control, sampling valve, and bottom outlet for easy operation. The sanitary, smooth interior ensures easy cleaning and hygiene. Ideal for wineries, they provide stable, oxygen‑free storage to preserve wine aroma, color and quality for long‑term aging.

7. Off-Center Bottom Cone Wine Fermenter

This off-center bottom cone wine fermenter is made of food-grade 304/316L stainless steel, featuring an eccentric conical bottom design for efficient lees discharge and wine clarification without turbulence. The offset cone allows complete sediment removal and minimizes wine loss during transfer. It can be equipped with a cooling/heating jacket for precise temperature control, sanitary polishing, manway, sampling valve, temperature port and CIP cleaning system. Ideal for red and white wine fermentation, aging and storage, it ensures stable fermentation, easy operation and high hygiene standards for wineries of all sizes.

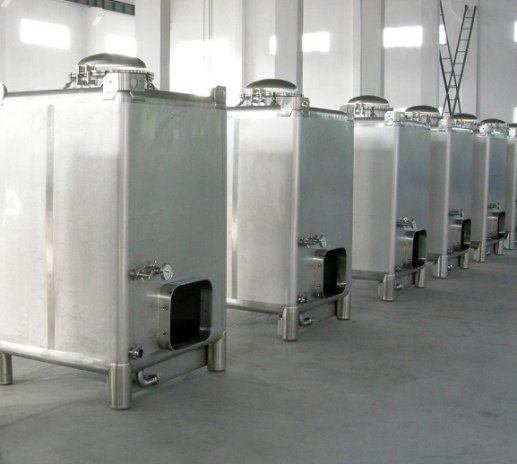

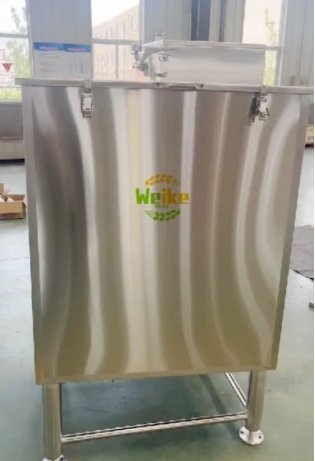

8. Square Wine Tank

This square wine tank is manufactured with food‑grade 304/316L stainless steel, ideal for wine fermentation, storage, aging and blending. Its square/rectangular structure saves space, improves workshop utilization and allows tight arrangement. With smooth sanitary interior, no dead corners, easy cleaning and maintenance, it can be equipped with jacket for temperature control, manway, sampling valve, liquid gauge and CIP port. Stable, durable and hygienic, it is widely used in wineries, breweries and beverage production lines for efficient wine processing.
